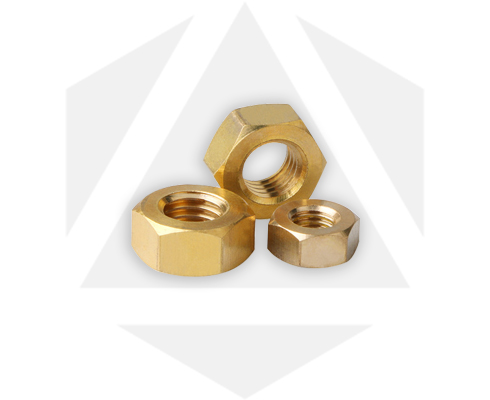

DIN 934 Hex Nut is a heat treated fastener with a metric thread pitch. Hex nuts are six-sided, internally threaded fasteners, mated with bolts, studs, screws, and other externally threaded products. The addition of the hex nut ensures that the bolt, etc. stays in place.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | Brass, Steel or Stainless Steel | |
| Thread | Heat treated, Coarse | |
| Type | Hex Nut | |
| Size | 7/8" | |
| Grade | Free Cutting Brass, CDA 360 Brass, C360 Brass | |
| Din 934 Hex Nut |
• BS 3692 • BS 57 • IS/1363 • IS/1367 |
|
| Nominal Size | Thread Pitch | F | H | ||
|---|---|---|---|---|---|
| Width Across Flats | Thickness | ||||
| Max | Min | Max | Min | ||
| M2 | 0.4 | 4 | 3.82 | 1.6 | 1.35 |
| M2.5 | 0.45 | 5 | 4.82 | 2 | 1.75 |
| M3 | 0.5 | 5.5 | 5.32 | 2.4 | 2.15 |
| M4 | 0.7 | 7 | 6.78 | 3.2 | 2.9 |
| M5 | 0.8 | 8 | 7.78 | 4 | 3.7 |
| M6 | 1 | 10 | 9.78 | 5 | 4.7 |
| M8 | 1.25 | 13 | 12.73 | 6.5 | 6.14 |
| M10 | 1.5 | 17 | 16.73 | 8 | 7.64 |
| M12 | 1.75 | 19 | 18.67 | 10 | 9.64 |
| M16 | 2 | 24 | 23.67 | 13 | 12.3 |
| M20 | 2.5 | 30 | 29.16 | 16 | 14.9 |
