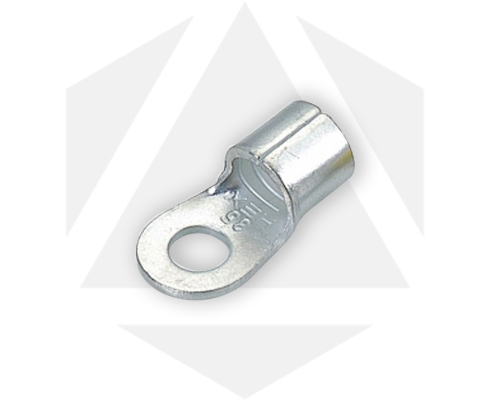

Brass Cable Glands provide the range of Ring Type Cable Terminal Ends in both Insulated and Non-Insulated Type. They are manufactured from high conductive copper and electro-tinned plated for corrosion resistance and vibration resistance. Ring Cable Terminals are available with Internal Barrel Serrations to assure quality wire contact and maximum tensile strength. The manufactured range of High Quality and Standard Ring Type Cable Terminals are available for different joining techniques including crimping, soldering and welding. Ring Type Cable Terminals are also available with imperial stud and screws as per custom specification. Insulated Ring Cable Terminals are also available based on our valued customer requirements.

TECHNICAL SPECIFICATIONS
Material • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube.
Threading • B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form
• N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads
• Metric, NPT, BSP, PG or specified
• ISO Metric (MM Threads)
• BA Threads
• DIN Standard
• GB Threads
Finishing and Coating • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements.
Applications • Provide secure connection in High Vibration Application.
• Used to Connect wiring to screws and studs.
• Widely used in solderless wiring applications.
• Allow Optimum Fit and Maximum electrical performance.
• Widely used in electrical panels, boards, electronics, switch boards and other wiring applications.
• Widely used in Electrical, Telecommunication, Electronics, Mechanical, Electrical Distribution and other Industrial Application.
Cable mm2 STUD HOLE 0 DIMENSIONS
A C D F B H L1 J
50 8.2 10.5 14.1 18 1.8 16 12 34 43
10.2 10.5 14.1 24 1.8 16 14 36 48
12.7 10.5 14.1 24 1.8 16 14 36 48
16.2 10.5 14.1 32 1.8 16 15 38 54
70 10.2 12 14.1 22 2 18 11 36 47
12.7 12 16 22 2 18 11 36 47
