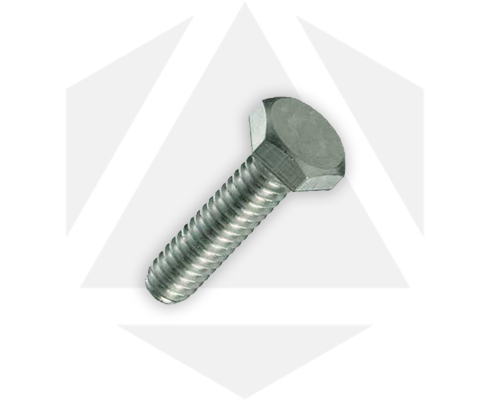

Brass Hex Bolts are also known as Brass Hex Head Bolts and Hex Cap Bolts. Hex Bolts are very common choice when it comes to construction and repair. Hex bolts are available with standard threading or full threading, depending on the length of the bolt.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | Steel, Stainless Steel, Brass | |
| Thread | Coarse | |
| Type | Hex | |
| Grade | A1 & A2 Stainless Steel, A2 & A4 Steel, CDA 360 Brass, C360 Brass | |
| d | s | e | k | b= to 125 | b= to 150 | b= to 200 |
|---|---|---|---|---|---|---|
| M8 x 1 | 13 | 14.38 | 5.3 | 22 | 28 | |
| M10 x 1 | 17 | 18.9 | 6.4 | 26 | 32 | |
| M10 x 1.25 | 17 | 18.9 | 6.4 | 26 | 32 | |
| M12 x 1.25 | 19 | 21.1 | 7.5 | 30 | 36 | |
| M12 x 1.5 | 19 | 21.1 | 7.5 | 30 | 36 | |
| M14 x 1.5 | 22 | 24.49 | 8.8 | 34 | 40 | |
| M16 x 1.5 | 24 | 26.75 | 10 | 38 | 44 | |
| M18 x 1.5 | 27 | 30.14 | 11.5 | 42 | 48 | |
| M20 x 1.5 | 30 | 33.53 | 12.5 | 46 | 52 | |
| M20 x 2 | 30 | 33.53 | 12.5 | 46 | 52 | |
| M24 x 2 | 36 | 39.98 | 15 | 54 | 60 |
