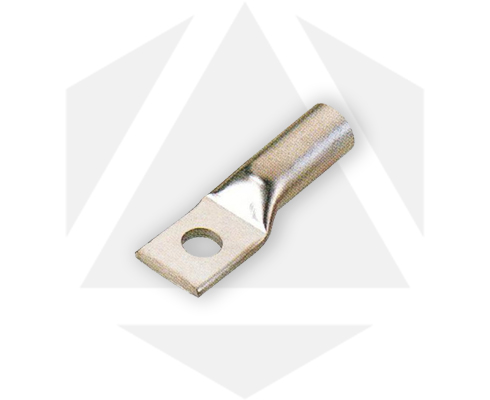

Short Barrel Copper Compression Lugs are designed to meet the international standard. The Compliance with electrical specification are in accordance with the general requirement including Initial and Final corrosion resistance, optimum conductivity, Tensile Pull Off test and Cycling Periods, if necessary. Compression Joints for Copper Connections as per BS 4579 part 11970 (1988). Available with short barrel installation in minimum space. Specially chamfered barrel for ease of installation.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube | |
| Threading | • B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form • N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads • Metric, NPT, BSP, PG or specified • ISO Metric (MM Threads) • BA Threads • DIN Standard • GB Threads |
|
| Finishing and Coating | • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements. | |
| Applications | • Specially designed for industrial and building application. • For switch gear connections and solid conductors. • Designed for regular duty applications and ideal for confined areas. • For use with Copper Conductor including AWG stranded, flexible cable, welding cable and portable cord. • For electrical industries including control panels, switch gears, Transformers, Circuit Breakers. • Ideally suited for secondary power distribution in building, power plants, electrical equipment and in industrial application. |
|
| Wire size | Color code | Bolt size | Dimensions | |
|---|---|---|---|---|
| d | f | |||
| 8 | red | #10 | 7/16 | 1-1/8 |
| 6 | blue | #10 | 13/16 | 1-1/2 |
| 6 | blue | ¼ | 13/16 | 1-1/2 |
| 4 | gray | #10 | 13/16 | 1-1/2 |
| 4 | gray | 5/16 | 13/16 | 1-1/2 |
| 4 | gray | ¼ | 13/16 | 1-1/2 |
| 3 | white | ¼ | 13/16 | 1-1/2 |
