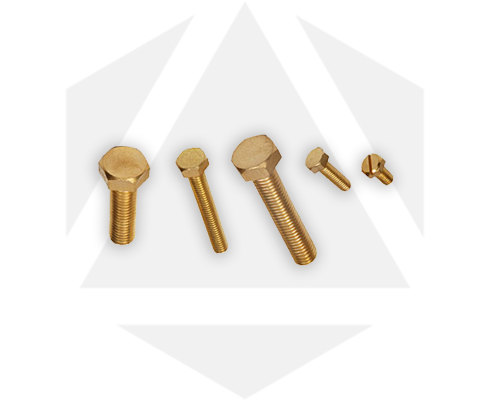

Our Copper Bolts offered comprise precision designed and engineered range of nut bolts made of copper metal that match up with the specific end usage demands in different industry sectors. These copper bolts are also light in terms of finish and find wide usage in automobile industry, general engineering applications and wood work based usage among others. Further, their fabrication using premium quality brass as well as extensive checks introduced in the manufactured components also assure of high performance and longer usage life.
TECHNICAL SPECIFICATIONS | ||
---|---|---|
Material | Copper | |
Thread | Metric, Coarse | |
Type | Round, Square, Hex | |
Grade | CDA 101, CDA 102, CDA 110 |
Bolt Diameter | D | F | H | |||
---|---|---|---|---|---|---|
Body Diameter | Head Diameter | Head Height | ||||
Max | Max Edge Sharp | Min Edge Sharp | Absolute Min Rounded | Max | Min | |
1⁄2 | 0.515 | 0.935 | 0.905 | 0.845 | 0.269 | 0.233 |
5⁄8 | 0.642 | 1.169 | 1.132 | 1.066 | 0.336 | 0.292 |
3⁄4 | 0.768 | 1.402 | 1.357 | 1.285 | 0.403 | 0.349 |
7⁄8 | 0.895 | 1.637 | 1.584 | 1.511 | 0.470 | 0.408 |
1 | 1.022 | 1.869 | 1.810 | 1.735 | 0.537 | 0.466 |
11⁄8 | 1.149 | 2.104 | 2.037 | 1.962 | 0.604 | 0.525 |
11⁄4 | 1.277 | 2.337 | 2.262 | 2.187 | 0.671 | 0.582 |
13⁄8 | 1.404 | 2.571 | 2.489 | 2.414 | 0.738 | 0.641 |
11⁄2 | 1.531 | 2.804 | 2.715 | 2.640 | 0.805 | 0.698 |
