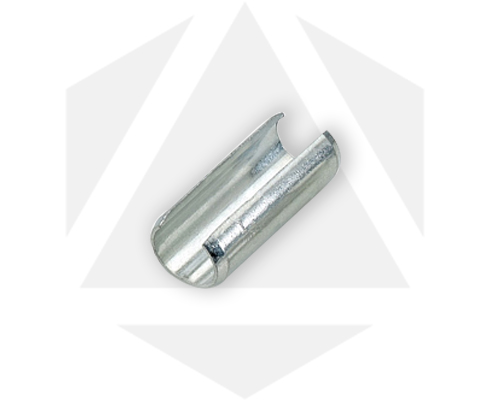

Brass Cable Glands manufacture Soldering Type Copper Weak Back Ferrules from high quality and international standard copper, annealed copper, electrolytic copper and more. Tinning and other surface finish is provided for better finish, avoid oxidation and to achieve maximum corrosion protection. Due to Soldering, Loose terminations are voided and thereby preventing heat at termination ends. Soldering Copper Weak Back Ferrules are UL, CuL certified and RoHS Compliant.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube | |
| Threading |
• B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form • N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads • Metric, NPT, BSP, PG or specified • ISO Metric (MM Threads) • BA Threads • DIN Standard • GB Threads |
|
| Finishing and Coating | • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements. | |
| Applications |
• Used to solder straight through joints. • For stranded Copper Cables. • Fully Annealed to guarantee optimum ductility for any type of connections. • Used in Plumbing and Electrical Conduit System to Join two or more components. • Used where high value of current flow is desired. |
|
| CABLE MM3 | DIMENSIONS | |||||
|---|---|---|---|---|---|---|
| A | C | G | J | P | W | |
| 6 | 3.0 | 4.6 | 2 | 20 | 3 | - |
| 10 | 4.4 | 6.0 | 2 | 25 | 4 | - |
| 16 | 5.5 | 7.5 | 2 | 25 | 5 | 1.5 |
| 25 | 7.0 | 9.0 | 2 | 30 | 7 | 1.5 |
| 35 | 8.0 | 10.4 | 2 | 35 | 8 | 1.5 |
| 50 | 9.5 | 11.9 | 2 | 40 | 9 | 1.5 |
| 70 | 12.0 | 14.8 | 3 | 45 | 12 | 3.0 |
| 95 | 13.5 | 16.3 | 3 | 50 | 13 | 3.0 |
| 120 | 15.5 | 18.7 | 4 | 55 | 15 | 3.0 |
| 150 | 17.0 | 20.6 | 4 | 60 | 16 | 3.0 |
