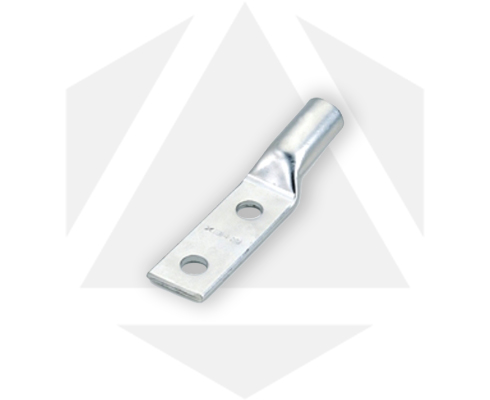

The range of Copper Cable Terminal Ends with Extended Palm are available in compliance with the demands of majority of end users. Copper Able Terminal Ends with Extended Palm are also comply with electrical specification in accordance with the General Requirement. Also offer Initial/Final Resistance, Tensile Pull Off Test and Cycling periods, if necessary. All Copper Cable Terminal Ends with Extended Palm are standard with blank palm and stud holes which can be punched. The presence of inspection hole facilitates full insertion of conductor. The Terminals / lugs are tin plated to avoid oxidization and to achieve maximum corrosion protection.

Material • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube
Threading • B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form
• N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads
• Metric, NPT, BSP, PG or specified
• ISO Metric (MM Threads)
• BA Threads
• DIN Standard
• GB Threads
Finishing and Coating • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements.
We manufacture following terminals as per DIN Standards • Copper Sealing Ferrules as per DIN 46228
• Copper Tubular Terminals as per DIN 40500
• Copper Tubular Terminals as per DIN 46235
• Also Available with Blank Palm (Without Hole)
• Also Available with Inspection Hole.
Applications • Used where more secured termination is required.
• Normally used in vibrating application.
• Provides circumferential insulation support to the wire and prevents the loss of connects due to vibration, or flexing in use.
• Designed for terminating and connecting low or medium voltage cables to equipment.
• Added Connectivity through a larger surface area for secure connection to the power source.
