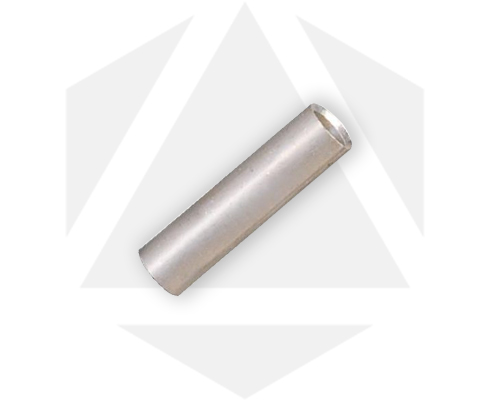

Short Barrel Copper Compression Sleeves are manufactured from high strength seamless copper tubing. The Connector is electro-tin plated or available with any type of coating for high voltage applications. Threads are formed by railing process giving the nut extra clamping force. Pressure Pads are made from extruded bar, preventing the pads from cracking. Connector end has a gentle, continuous flare to ensure ease of cable insertion of flexible and extra flexible cables. The Flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube | |
| Threading | • B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form • N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads • Metric, NPT, BSP, PG or specified • ISO Metric (MM Threads) • BA Threads • DIN Standard • GB Threads |
|
| Finishing and Coating | • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements. | |
| Applications | • Suitable for Grounding, Bonding and Direct Burial Applications. • Designed to terminating jumper loop and equipment taps to switch pads and other substation switch yard application. • Ferrules direct compression lugs are installed using our crimping tools as well as industry standard ones. • Designed for various engineering applications. |
|
