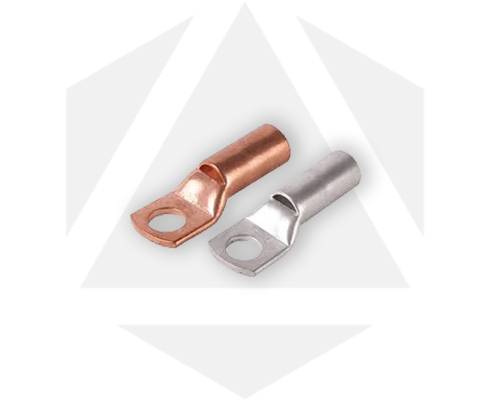

We offer Long Barrel Lugs in copper finish of Electro Tinned to BS 18721984 (1984). Long Barrel Terminal Lugs are manufactured under strict quality control and confirm to the specification and requirements of our clients. Our Long Barrel Lugs are available for varied electrical industrial applications including Control panels, Switch gears, Transformers, Circuit breakers and more.

TECHNICAL SPECIFICATIONS
Material • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube
Threading • B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form
• N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads
• Metric, NPT, BSP, PG or specified
• ISO Metric (MM Threads)
• BA Threads
• DIN Standard
• GB Threads
Finishing and Coating • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements.
Applications • Allows more length for heat-shrink sealing, to ensure a totally air tight seal.
• Designed for totally air-tight cable applications.
• Long palm can accommodate two bolts, for secure termination.
• Conforms to Australian and many international standards.
Cable mm2 Stud Hole E Dimensions
A C D F G H B J
6 8.4 3.8 5.5 12 1 6 9 11 29
10 8.4 4.5 6.2 12 1.2 6 9 11 29
16 8.4 5.4 7.1 12 1.4 7 7 15 35
25 8.4 6.8 8.8 16 2 7 7 15 35
35 8.4 8.2 10.6 15.3 2.4 9 9 15 38
50 13 9.5 12.4 18 2.9 10 11 20 47
70 13 11.2 14.7 21 3.5 12 13 22 54
95 13 13.5 17.4 25 3.9 13 13 24 59
120 13 15 19.4 28 4.4 14 14 27 65
150 13 16.5 21.2 30 4.7 16 16 32 75
185 13 18.5 23.5 34 5 17 17 39 85
240 17 21 26.5 38 5.5 20 20 46 100
300 21 23.5 30 43 6.5 22 22 51 110
400 21 28.5 36.5 50.1 8 26 26 53 123
500 21 30 39 56 9 28 28 58 134
