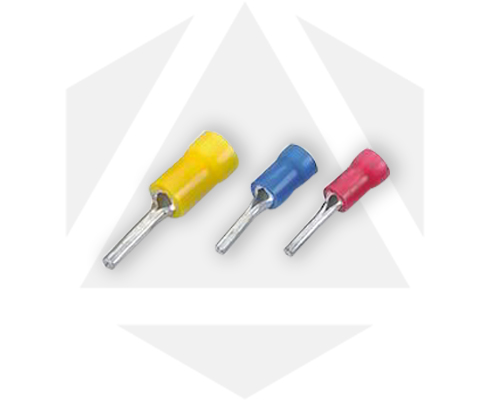

Copper Insulated Pin Type Cable Terminals are made from brass, tinned electrolytic copper with insulated PCV or copper sleeve. Copper Insulated type pin cable terminals are available with easy entry chamfer within the PVC insulation aids conductor insertion, crimped using any suitable commercially available compression tools. They are RoHS Complaint and UL Listed. The attached insulation pins and sleeves which are easy entry type have excellent deformation characteristics and retain its shape after compression. Copper Insulated Pin Type Cable Terminals are highly durable and reliable for wide applications in various machinery sectors. They are designed to meet the requirement of several machine or manufacturing industries.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube. | |
| Threading |
• B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form • N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads • Metric, NPT, BSP, PG or specified • ISO Metric (MM Threads) • BA Threads • DIN Standard • GB Threads |
|
| Finishing and Coating | • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements. | |
| Applications |
• For used in Panel Building, Telecoms and Utilities. • Provide fast connection and disconnection in various application. • Ideal for terminating flexible control cables to meters, connectors, control panels and conductors into contact blocks. • Widely used for excellent electrical conductivity. • Provide maximum efficiency under heavy-duty applications. |
|
| Cable mm2 | Dimensions | TYPE | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | F | B | G+H | J | C1 | J1 | ||
| 1.5 | 1.6 | 3.2 | 1.9 | 0.8 | 5 | 10 | 17 | 4.8 | 10 | I |
| 2.5 | 2.3 | 3.9 | 1.9 | 0.8 | 5 | 10 | 17 | 5.5 | 10 | I |
| 4 | 2.9 | 4.9 | 2.7 | 1 | 6 | 10 | 20 | 7.1 | 14 | I |
| 6 | 3.6 | 5.6 | 2.7 | 1 | 6 | 10 | 20 | 7.1 | 14 | I |
| 6 | 4 | 6 | 2.7 | 1 | 6 | 10 | 20 | 7.9 | 14 | I |
| 10 | 4.5 | 6.7 | 4.3 | 1.1 | 8 | 12 | 22 | 7.9 | 16 | II |
| 16 | 5.8 | 8.2 | 5.5 | 1.2 | 10 | 13 | 26 | 10 | 20 | II |
