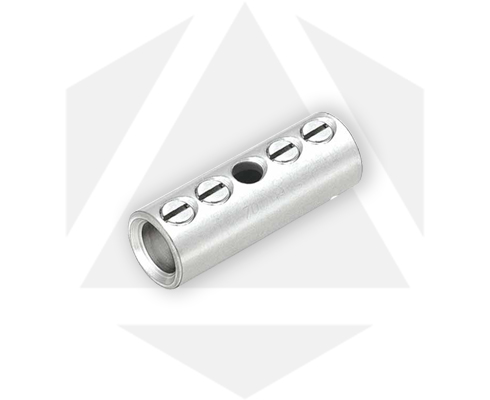

Brass Cable Glands manufacture Tinned Screw Sleeves with extreme quality raw material. The standard range of Tinned Screw Sleeves are renowned for high quality, reliability and durability. Screws are made of international standard steel, stainless steel, brass, zinc copper or other composition as per custom requirements. Tinned Screw Sleeves are placed onto the end of the wire where it is crimped.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube. | |
| Threading |
• B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form • N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads • Metric, NPT, BSP, PG or specified • ISO Metric (MM Threads) • BA Threads • DIN Standard • GB Threads |
|
| Finishing and Coating | • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements. | |
| Applications |
• Used to insert the conductor into the connection or terminal compartment. • Protecting the fine strands of multi-stranded wires. • Provide a gas-tight connection which prevents air or gases to permeate. • The Threaded Sleeve is turned or screwed into the tapered bore of the body. • Facilitates Good Heat dissipation. • Inspection Hole ensures full cable insertion. |
|
| CABLE MM3 | Dimensions | |
|---|---|---|
| A | G | |
| 6 | 3.5 | 30 |
| 10 | 4.4 | 30 |
| 16 | 5.5 | 40 |
| 25 | 6.8 | 45 |
| 35 | 8.2 | 45 |
| 50 | 9.5 | 48 |
| 70 | 11.2 | 52 |
| 95 | 13.4 | 55 |
| 120 | 15 | 55 |
| 150 | 16.5 | 60 |
