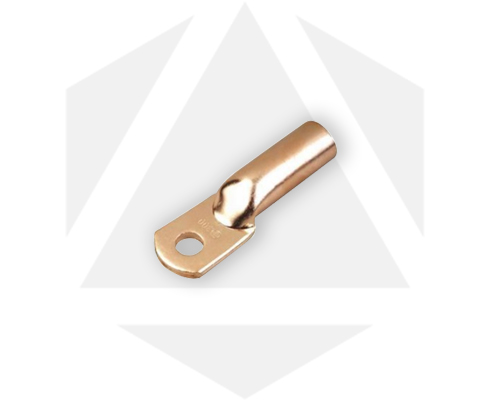

Tinned Copper Forged Cable Lugs are manufactured from High conductive electrolytic copper or EC Grade Copper. They are Tin Plated to provide excellent corrosion resistance. Tinned Copper Forged Cable Lugs are crimped using standard tools and dies. They are used in all sectors of the electrical industry and known for their durability and reliability. Connection and Jointing is done using crimping method. They are also available as per custom specification and requirements.

TECHNICAL SPECIFICATIONS
Material • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube.
Threading • B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form
• N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads
• Metric, NPT, BSP, PG or specified
• ISO Metric (MM Threads)
• BA Threads
• DIN Standard
• GB Threads
Finishing and Coating • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements.
Applications • Preferred for Low and Medium Voltage High Current situations.
• Used for termination of copper electrical conductors.
• For Control Panels, Switch Gears, Transformers and Circuit Breakers.
• For Distribution and Generation Electricity Boards.
• Used for terminating copper cables and ropes in power cables and connecting them in the electrical circuit by using a bolt and nut.
CABLE MM3 Dimensions
A B C E F G H
16 8.3 5.5 30 22 4.5 80 11.5
16 10.3 5.5 30 22 4.5 80 11.5
16 12.3 5.5 30 22 4.5 80 11.5
16 16.3 5.5 30 25 4.0 85 11.5
25 10.3 7.0 30 22 4.5 80 11.5
25 12.3 7.0 30 22 4.5 80 11.5
25 16.3 7.0 30 25 4.0 85 11.5
35 10.3 8.5 31 22 4.5 80 11.5
35 12.3 8.5 31 22 4.5 80 11.5
50 10.3 9.5 33 25 4.0 80 12.7
