This type of conduit is used where mechanical strength and flexibilities are required.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|

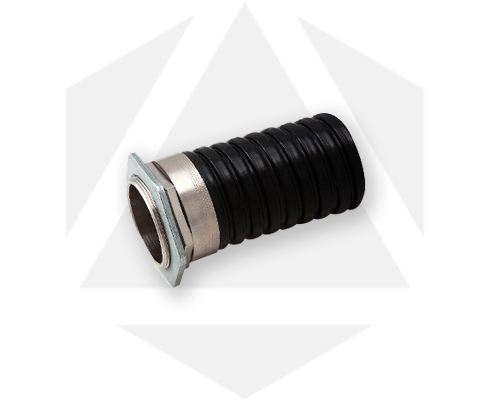

| Construction | Galvanized steel, helically wound, flexible steel conduit with PVC Coating | |
| Color | Black, Gray or other on request | |
| Features | Highly Flexible and mechanical strength | |
| IP | IP54, IP55 | |
| Temp | -15 ° C to +70 ° C | |
| Application | General wiring and connections to machines. PVC covering provides a high degree of weather proofing without restricting the excellent flexibility characteristics. Ideal for static and dynamic applications requiring high mechanical protection and high flexibility. Designed for both commercial and industrial users. | |
| Size | Internal Diameter mm | External Diameter mm | Min Bending Radius mm | Coil Packing Metre |
|---|---|---|---|---|
| 3/8" | 10.5 | 14.5 | 30 | 50 |
| 1/2" | 12.5 | 16.25 | 35 | 50 |
| 5/8" | 16 | 20 | 40 | 50 |
| 3/4" | 19.5 | 23.5 | 48 | 15,30,50 |
| 1" | 25.4 | 29.25 | 55 | 15,30,50 |
| 1 ¼" | 32.2 | 36.25 | 65 | 15,20 |
| 1 ½" | 40.3 | 46 | 72 | 15,20 |
| 2" | 51 | 56 | 90 | 10,20 |
| 2 ½” | 64 | 69.5 | 135 | 10 |
| 3" | 76.5 | 81.3 | 145 | 10 |
| 3 ½” | 89 | 95 | 152 | 10 |
| 4" | 101 | 111 | 180 | 10 |
