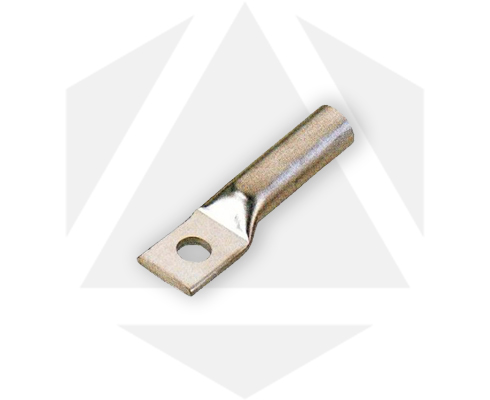

Copper Compression Lug with Long Barrel and generous entrance chamfer provides easy cable insertion. Copper Compression Lugs are available with Long Barrel, Mounting Holes and Multiple Crimps. Copper Compression Lugs with Long Barrel are available with electro-tin plating to reduce resistance of corrosion, vibration & contacts and maximize conductivity. The attached Long Barrel is shock-proof, or bell mouthed for faster and easier conductor entry. The available types of Compression Lugs are compatible with all standard compression crimping tools. Compression Lug Size are easily identified by industry standard color codes and markings.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube. | |
| Threading |
• B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form • N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads • Metric, NPT, BSP, PG or specified • ISO Metric (MM Threads) • BA Threads • DIN Standard • GB Threads |
|
| Finishing and Coating | • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements. | |
| Applications |
• Suitable for all type of crimped connections of single, multi, fine or superfine stranded copper conductors. • Ensure Reliable and Durable Connection. • For compatibility with all commercial and industrial wiring applications. • Provide Secure and Long Lasting Wire Terminations. • Ideal for high conductive connections. |
|
| WIRE SIZE | Colour | Bolt Size | Dimensions | |
|---|---|---|---|---|
| D | F | |||
| 8 | RED | - | 1-1/8 | 1-5/2 |
| 6 | Blue | 2.250 | 1-1/8 | 1-13/16 |
| 4 | GRAY | 2.250 | 1-1/8 | 1-13/16 |
| 4 | GRAY | 0.312 | 1-1/8 | 1-13/16 |
| 3 | WHITE | 0.250 | 1-1/8 | 1-13/16 |
| 2 | BROWN | 0.312 | 1-1/4 | 2-7/32 |
| 2 | BROWN | 0.250 | 1-1/4 | 2-7/32 |
