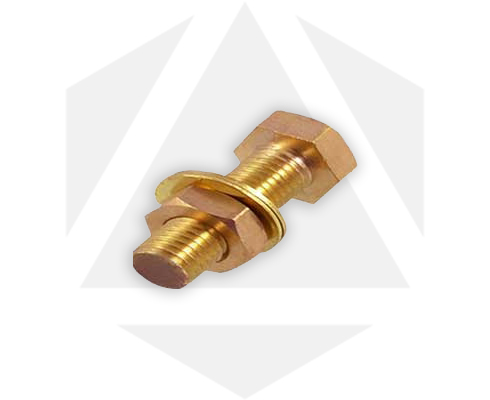

Brass Tuned Bolts have a shank which is formed from a hexagonal rod. The surfaces of Brass Turned Bolts are prepared carefully and are machined to fit in the hole. Tolerances allowed are very small. These bolts have high shear and bearing resistance.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | Steel, Stainless Steel, Alloy Steel, Brass | |
| Thread | Round, Square | |
| Type | Round, Square | |
| Grade | A1 & A2 Stainless Steel, A2 & A4 Steel, CDA 360 Brass, C360 Brass | |
| Bolt Diameter | C | H | ||
|---|---|---|---|---|
| Head Diameter | Head Height | |||
| Max | Min | Max | Min | |
| 1⁄2 | 1.094 | 1.032 | 0.270 | 0.250 |
| 5⁄8 | 1.344 | 1.219 | 0.344 | 0.313 |
| 3⁄4 | 1.594 | 1.469 | 0.406 | 0.375 |
| 7⁄8 | 1.844 | 1.719 | 0.469 | 0.438 |
| 1 | 2.094 | 1.969 | 0.531 | 0.500 |
| 11⁄4 | 2.850 | 0.531 | 0.500 | |
