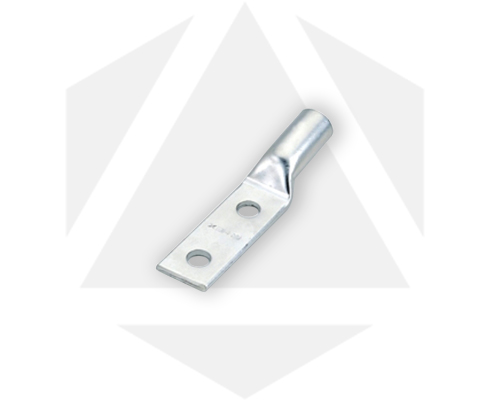

We offer Long Barrel Lugs in copper finish of Electro Tinned to BS 18721984 (1984). Long Barrel Terminal Lugs are manufactured under strict quality control and confirm to the specification and requirements of our clients. Our Long Barrel Lugs are available for varied electrical industrial applications including Control panels, Switch gears, Transformers, Circuit breakers and more.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | • E-Copper, Aluminium, High Conductivity Copper to EN 12735, Copper BS 4579 Part 3, PVC, High Conductivity Aluminium Tube | |
| Threading | • B.S.W., B.S.F., B.S.B., B.S.P. & B.S.P.T as per British Standard Whitworth Form • N.C. & U.N.C., N.F. & U.N.F., N.P.T & N.P.S., N.S., N.E.F. etc. as per American National Form Threads • Metric, NPT, BSP, PG or specified • ISO Metric (MM Threads) • BA Threads • DIN Standard • GB Threads |
|
| Finishing and Coating | • Natural, Nickel Plated, Tin Plated Brass, Electro-Tin, Chrome or any coating as per customer requirements. | |
| Applications | • Allows more length for heat-shrink sealing, to ensure a totally air tight seal. • Designed for totally air-tight cable applications. • Long palm can accommodate two bolts, for secure termination. • Conforms to Australian and many international standards. |
|
| Wire Size | Colour Code | Bolt Size | Dimensions | ||
|---|---|---|---|---|---|
| D | F | S | |||
| 6 | Blue | 1/4(2) | 1-1/8 | 2.81 | 0.625 |
| 6 | Blue | #10(2) | 1-1/8 | 3.18 | 0.75 |
| 6 | Blue | 1/4(2) | 1-1/8 | 3.18 | 0.625 |
| 6 | Blue | 1/4(2) | 1-1/8 | 3.18 | 0.625 |
| 6 | Blue | 1/4(2) | 1-1/8 | 3.18 | 1 |
| 6 | Blue | 5/16(2) | 1-1/8 | 3.18 | 1 |
| 6 | Blue | 3/8(2) | 1-1/8 | 3.18 | 0.75 |
