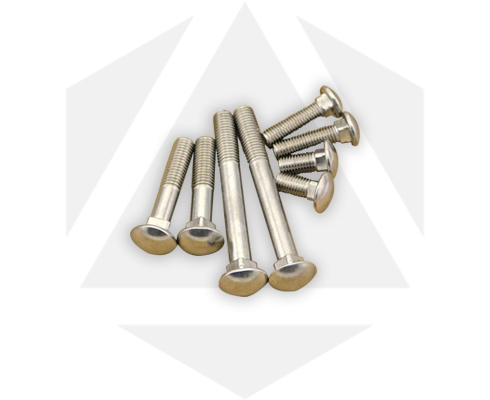

Carriage Bolts are pushed into a hole the same size as the shank and then hammered in the rest of the way, where the square shoulder locks it firmly in place. Used whenever a smooth finish surface is needed so that nothing becomes snagged on the fastener. Zinc plating, retards the corrosion rate in a normal atmosphere. Carriage bolts (round head with square neck) are commonly used in wood connections.

TECHNICAL SPECIFICATIONS
Material Steel, Stainless Steel, Alloy Steel, Brass
Thread Coarse, Metric
Type Round
Grade A1 & A2 Stainless Steel, A2 & A4 Steel, CDA 360 Brass, C360 Brass
d1 d2 k max f max b to 125 b to 200 b over 200
M5 13.55 3.3 4.1 16 - -
M6 16.55 3.88 4.6 18 24 -
M8 20.65 4.88 5.6 22 28 -
M10 24.65 5.38 6.6 26 32 45
M12 30.65 6.95 8.75 30 36 49
M16 38.8 8.95 12.9 38 44 57
M20 46.8 11.05 15.9 - - 46
