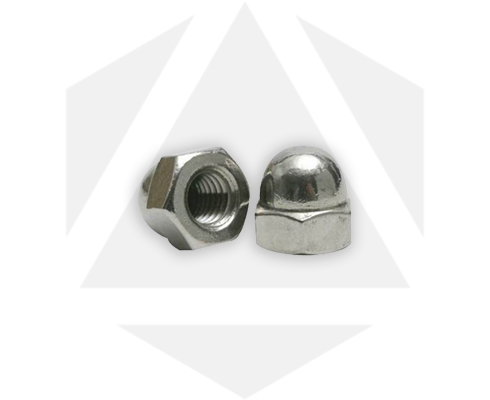

DIN 1587 Cap Nuts are one-piece hex nut, milled-from-the-bar, with a dome-shaped top (similar in shape to an acorn) and a threaded hole at the opposite end. DIN 1587 Cap nuts serve two main purposes: As decorative pieces and as covers for projecting threads.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | Steel or Stainless Steel, Brass | |
| Thread | Coarse | |
| Type | Cap Nut | |
| Size | 10mm | |
| Grade | Free Cutting Brass, Stainless Steel 316, CDA 360 Brass, C360 Brass | |
| DIN 1587 Cap Nut |
• BS 3692 • BS 57 • IS/1363 • IS/1367 |
|
| d | h | m max | d1 max | s | e |
|---|---|---|---|---|---|
| M3 | 7 | 2.4 | 5.5 | 5.5 | 6.01 |
| M4 | 8 | 3.2 | 6.5 | 7 | 7.66 |
| M5 | 10 | 4 | 7.5 | 8 | 8.79 |
| M6 | 12 | 5 | 9.5 | 10 | 11.05 |
| M8 | 15 | 6.5 | 12.5 | 13 | 14.38 |
| M10 | 18 | 8 | 16 | 17 | 18.9 |
| M12 | 22 | 10 | 18 | 19 | 21.1 |
| M14 | 25 | 11 | 21 | 22 | 24.49 |
| M16 | 28 | 13 | 23 | 24 | 26.75 |
| M20 | 34 | 16 | 28 | 30 | 33.53 |
| M24 | 42 | 19 | 34 | 36 | 39.98 |
