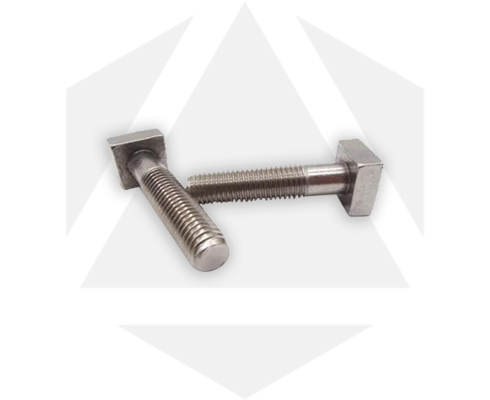

Brass Square bolts (also known as square head bolts or square head machine bolts) offer less danger of wrench slippage in hand wrenching, as well as a greater bearing area. In addition, the square head style is more secure than a hex bolt style when fixed into a cored recess. Square bolts are now most commonly used for aesthetic purposes to provide a rustic look in a new structure or to match existing fasteners in an older structure.

TECHNICAL SPECIFICATIONS
Material Steel, Stainless Steel, Brass
Thread Coarse, Metric
Type Square
Grade A1 & A2 Stainless Steel, A2 & A4 Steel, CDA 360 Brass, C360 Brass
Bolt Diameter D F C H
Body Diameter Width Across Flats Width Across Corners Height
Max Basic Max Min Max Min Basic Max Min
1⁄2 0.515 3⁄4 0.750 0.725 1.061 0.995 21⁄64 0.348 0.308
5⁄8 0.642 15⁄16 0.938 0.906 1.326 1.244 27⁄64 0.444 0.400
3⁄4 0.768 11⁄8 1.125 1.088 1.591 1.494 1⁄2 0.524 0.476
7⁄8 0.895 15⁄16 1.312 1.269 1.856 1.742 19⁄32 0.620 0.568
1 1.022 11⁄2 1.500 1.450 2.121 1.991 21⁄32 0.684 0.628
11⁄8 1.149 111⁄16 1.688 1.631 2.386 2.239 3⁄4 0.780 0.720
11⁄4 1.277 17⁄8 1.875 1.812 2.652 2.489 27⁄32 0.876 0.812
13⁄8 1.404 21⁄16 2.062 1.994 2.917 2.738 29⁄32 0.940 0.872
11⁄2 1.531 21⁄4 2.250 2.175 3.182 2.986 1 1.036 0.964
13⁄4* 29⁄16 13⁄16
2* 215⁄16 15⁄16
