| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | Brass, Electroless Nickel Plated Brass, Stainless Steel | |
| Function | Providing mechanical cable retention & electrical continuity via armoured wire termination and protect armour wire. | |
| Standard | BS 6121: Part 1:1989, IEC 62444, EN 62444 | |

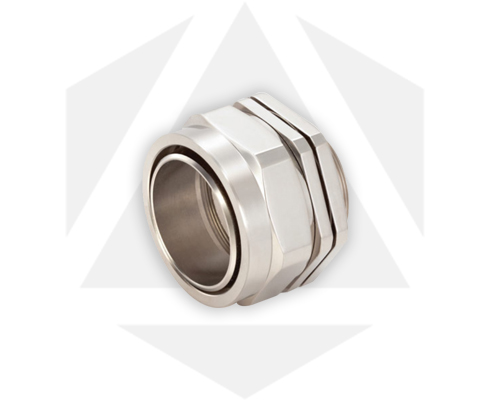

| Gland Type | Brass Cable Glands | |
| Operating Temperature | - 80°C to +300°C | |
| IP Rating | IP 66, IP 67, IP68 | |
| Cable Type | Single Wire Armour Cables | |
| Sealing Material | Inner Displacement Type Seal | |
| Features | • Easy to install, Rotary cone, Highly Nickle Plated. • Provide seal on outer sheath of the Unarmored cable. • Different Thread Size are available upon request. |
|
| Applications | • For use with all type of Steel Wire Armoured Cable and Aluminium Wire Armoured Cable. • Used for mechanical retention of the cable to provide clamping of armouring. • Ensure Earth Continuity. • Protect armour wire in dry indoor area for SWA cable. |
|
