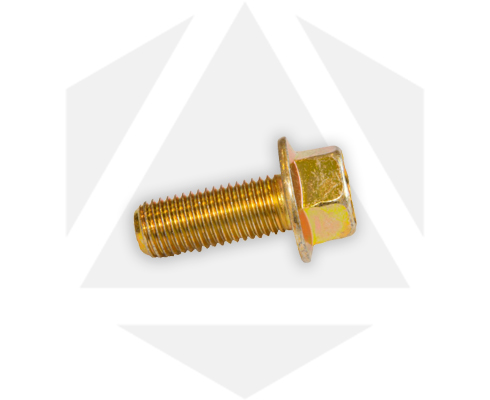

Flange bolts are machine threaded for use with a nut. They have a flange under the head that acts like a built in flat washer. This bolt is identifiable by the ridge or surrounding the bolt head, this built-in washer under the head of the Bolt acts to distribute the clamping load over a greater area. These bolts are sometimes called Frame bolts. A hexagonal head for use with a wrench.
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Material | Steel, Stainless Steel, Brass | |
| Thread | Metric | |
| Type | Flange | |
| Grade | A1 & A2 Stainless Steel, A2 & A4 Steel, CDA 360 Brass, C360 Brass. | |
| Flange Bolt Diameter | Head/Wrench Size* |
|---|---|
| Hex Flange Bolt (IFI-111) and Hex Flange Lag | |
| 1/4" | 3/8" |
| 5/16" | 1/2" |
| 3/8" | 9/16" |
| 7/16" | 5/8" |
| 1/2" | 3/4" |
| 9/16" | 13/16" |
| 5/8" | 15/16" |
| 3/4" | 1-1/8" |
| * This is the width across the flats. |
